Introduction to Implant
Implant of the implantable telemetry system is a device implanted into experiment animal for amplifying, collecting, wirelessly emitting and wirelessly transferring various physiological electric signals as well as wirelessly receiving stimulation signal command.
  • Product profile
  • Detailed parameters
  • Product features



Implant of the implantable telemetry system is a device implanted into experiment animal for amplifying, collecting, wirelessly emitting and wirelessly transferring various physiological electric signals as well as wirelessly receiving stimulation signal command. The implant provided by us is suitable for various animals (including mouse, rabbit, dog, swine and monkey). Measurable physiological signals include various pressure signals (e.g. arterial/venous blood pressure), physiological electric signals (e.g. ECG, EMG) and temperature signal. Each implant contains one or more sensors. Type of implant can be chosen based on specific experimental requirements. Besides the sensor used for measurement, a stimulation electrode (optional according to experimental requirement) can also be included in the implant. This electrode is used for receiving stimulation signal from remote control device and acting on related position of releasing stimulation


Implant of the implantable telemetry system is a device implanted into experiment animal for amplifying, collecting, wirelessly emitting and wirelessly transferring various physiological electric signals as well as wirelessly receiving stimulation signal command. The implant provided by us is suitable for various animals (including mouse, rabbit, dog, swine and monkey). Measurable physiological signals include various pressure signals (e.g. arterial/venous blood pressure), physiological electric signals (e.g. ECG, EMG) and temperature signal. Each implant contains one or more sensors. Type of implant can be chosen based on specific experimental requirements. Besides the sensor used for measurement, a stimulation electrode (optional according to experimental requirement) can also be included in the implant. This electrode is used for receiving stimulation signal from remote control device and acting on related position of releasing stimulation

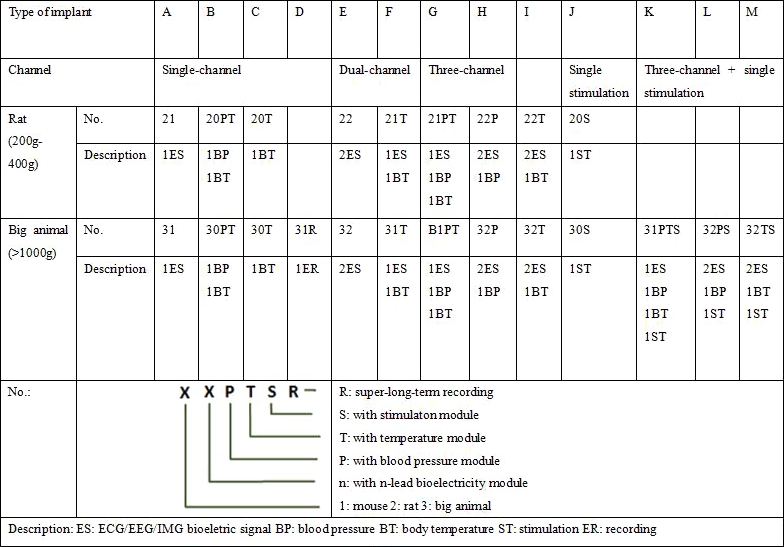

Types of animal experiment implants

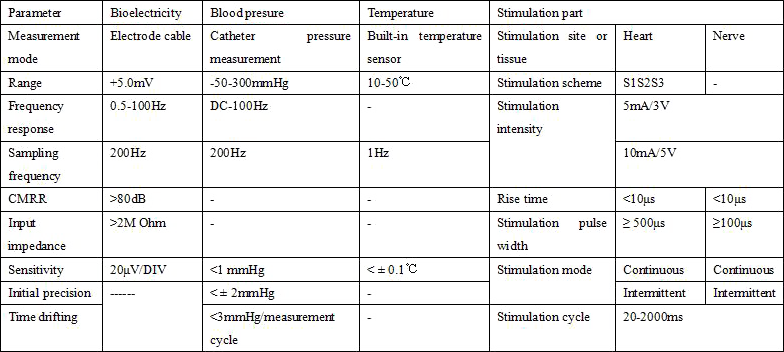

Performance indicators of rat implant

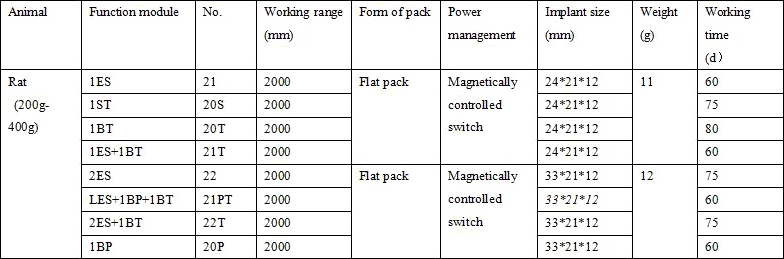

Technical parameters of rat implant

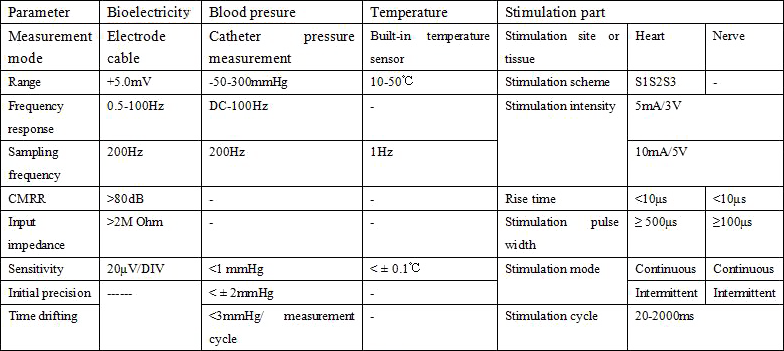

Performance indicators of big animal implant



Condition for estimating working time of system with stimulation module is working time of continuous stimulation under electric current of 1mA, frequency of 10Hz and pulse width of 1mS

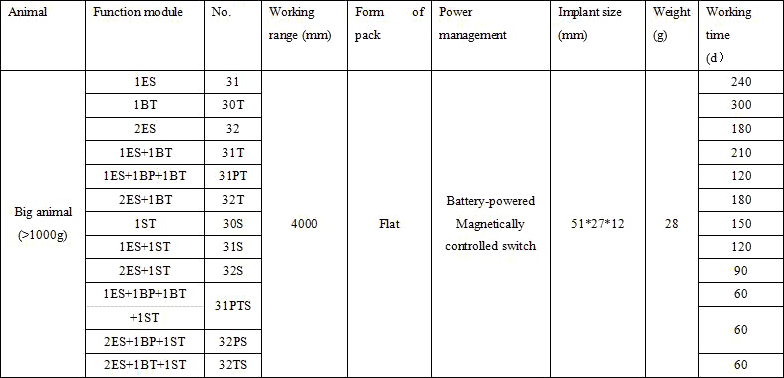

Technical parameters of big animal implant







1、The implant can be connected to stimulation electrode and used for providing continuous or intermittent electric pulse stimulation under programmed control (only the implant with stimulation function can be connected with stimulation electrode).

2、The enclosure has good biocompatibility.

3、Shape of the implant is designed based on animal’s anatomical structure, and suitable for placement under skin or abdominal muscle of experimental animal.

4、Battery replacement and re-disinfected implant renewal services are offered to minimize user’s use cost.
